reflecta Supvex 23067

The reflecta Supvex mount especially convinces with its outstanding flexibility, its smart features and elegant design, making it ideal for presentation rooms or your home theatre. The robust aluminium construction safely prevents video projectors from falling down. It can carry beamers with a weight of up to 15 kg. The Supvex mount can be rotated around 360° and tilted by +/-25° in all directions, making it particularly suitable for vaulted ceiling. With this design, you can always optimally align the beamer to the best projection position to obtain perfect viewing quality in any spatial conditions. The fixed distance from the ceiling to the four carrying arms is 22 cm. The Supvex mount features openings for cable management. The smart construction of the mount offers a comfortable solution to attach the beamer to the ceiling and remove it with a few moves if needed.

Universal mount for projectors.

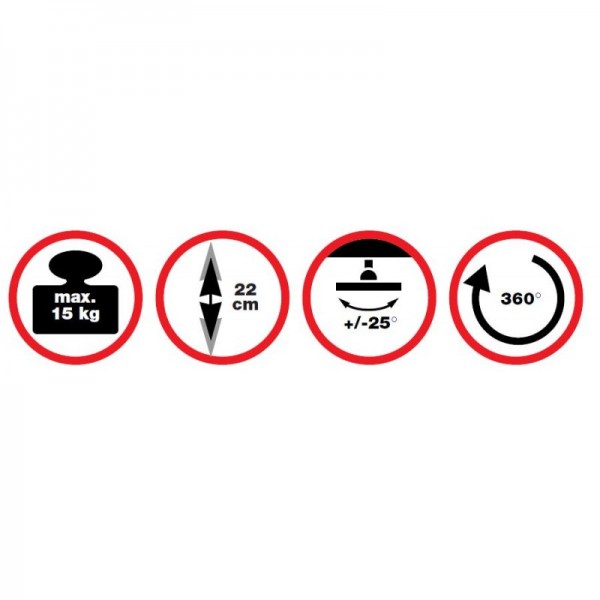

Tiltable in all directions, therefoe also suitable for installation on an inclined ceiling

pitch x from -25 °up to x 25 °
max.load 15 kg
360° rotation
color white
mounting ceiling

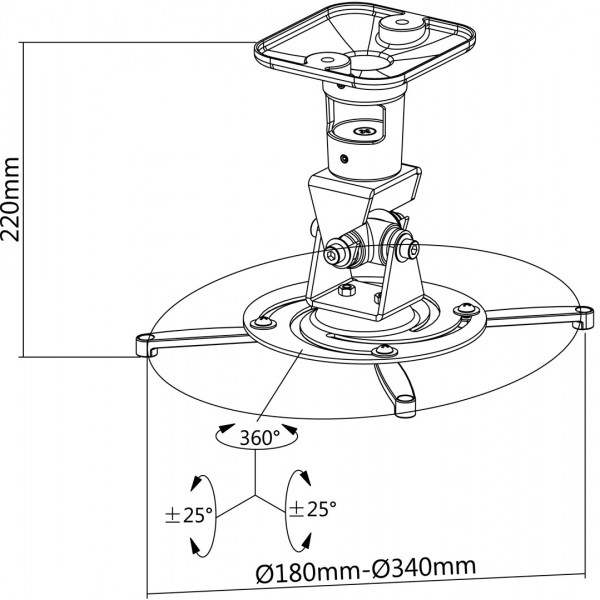

adjustable length length min.220 mm

(ENG) Data sheet

Manual

3D PDF
